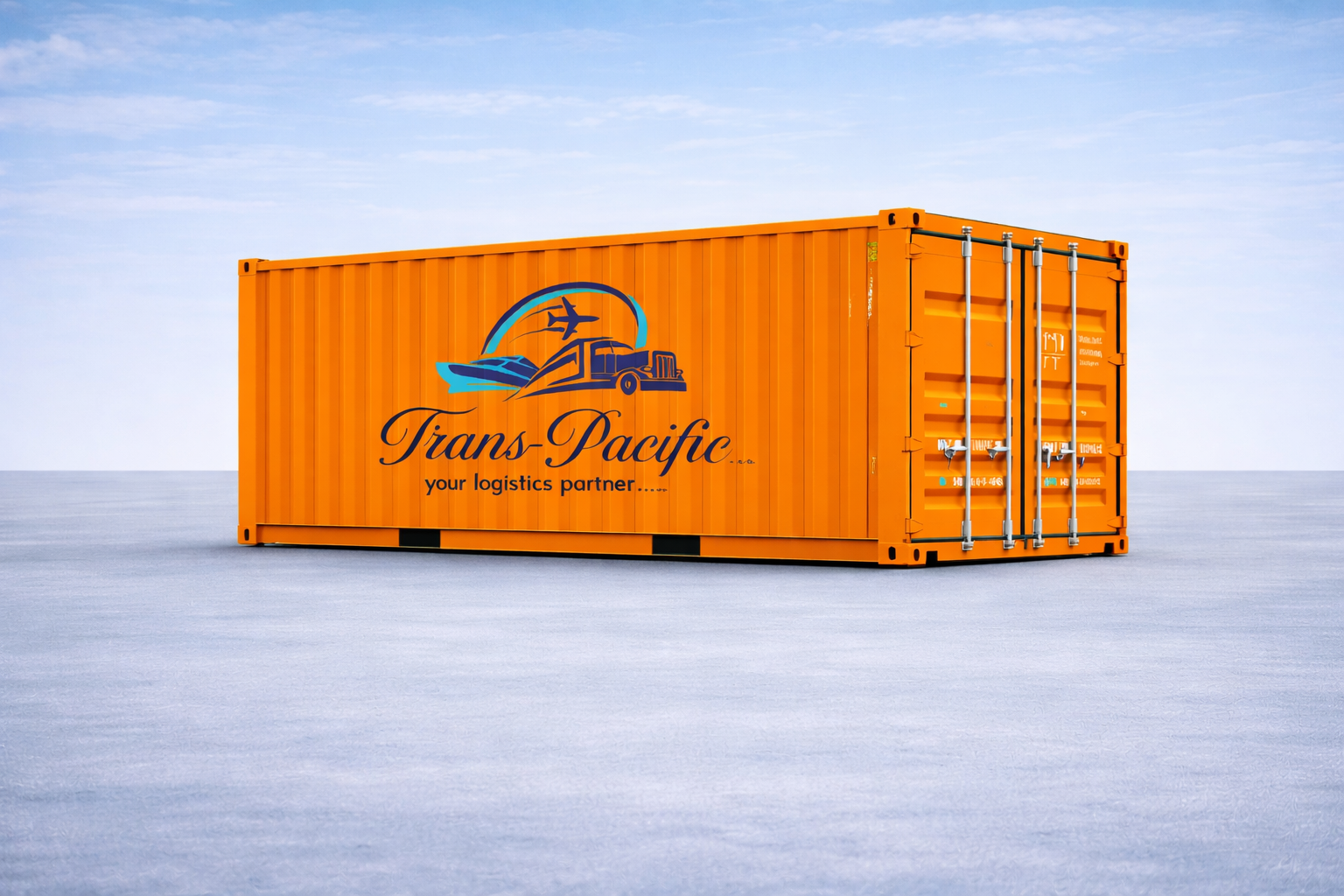

20-Foot Shipping Container Specifications

Standard dry containers ideal for safe and efficient cargo transportation.

20-Foot Shipping Container
External Dimensions
  • Length: 605.8 cm | 20 ft
  • Width: 243.8 cm | 8 ft
  • Height: 259.1 cm | 8 ft 6 in
Internal Dimensions
  • Length: 589.8 cm
  • Width: 235.2 cm
  • Height: 239.3 cm
Capacity
  • Volume: 33 CBM
  • Payload: 28,000 kg
  • Pallets: 10–11

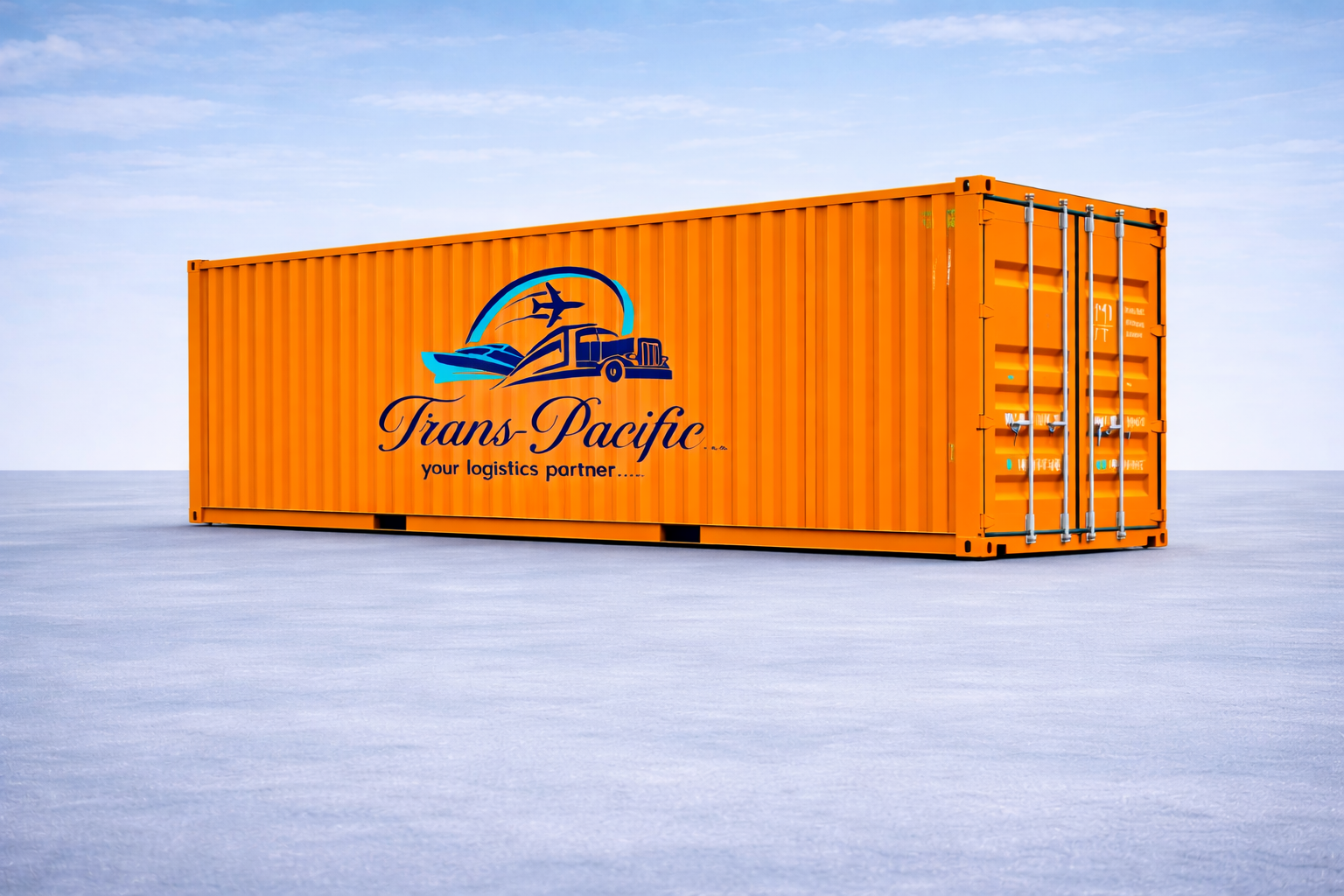

40-Foot Shipping Container Specifications

Ideal for high-volume cargo with maximum space utilization and lower freight cost per CBM.

40-Foot Shipping Container
External Dimensions
  • Length: 1219.2 cm | 40 ft
  • Width: 243.8 cm | 8 ft
  • Height: 259.1 cm | 8 ft 6 in
Internal Dimensions
  • Length: 1203.2 cm
  • Width: 235.2 cm
  • Height: 239.3 cm
Capacity
  • Volume: 67 CBM
  • Payload: 26,500–27,000 kg
  • Pallets: 20–22

40-Foot High Cube (HC) Container Specifications

Extra height container providing higher cubic capacity for bulky and lightweight cargo.

40-Foot High Cube (HC) Container
External Dimensions
  • Length: 1219.2 cm | 40 ft
  • Width: 243.8 cm | 8 ft
  • Height: 289.6 cm | 9 ft 6 in
Internal Dimensions
  • Length: 1203.2 cm
  • Width: 235.2 cm
  • Height: 269.8 cm
Capacity
  • Volume: 76 CBM
  • Payload: 26,000–26,500 kg
  • Pallets: 22–24

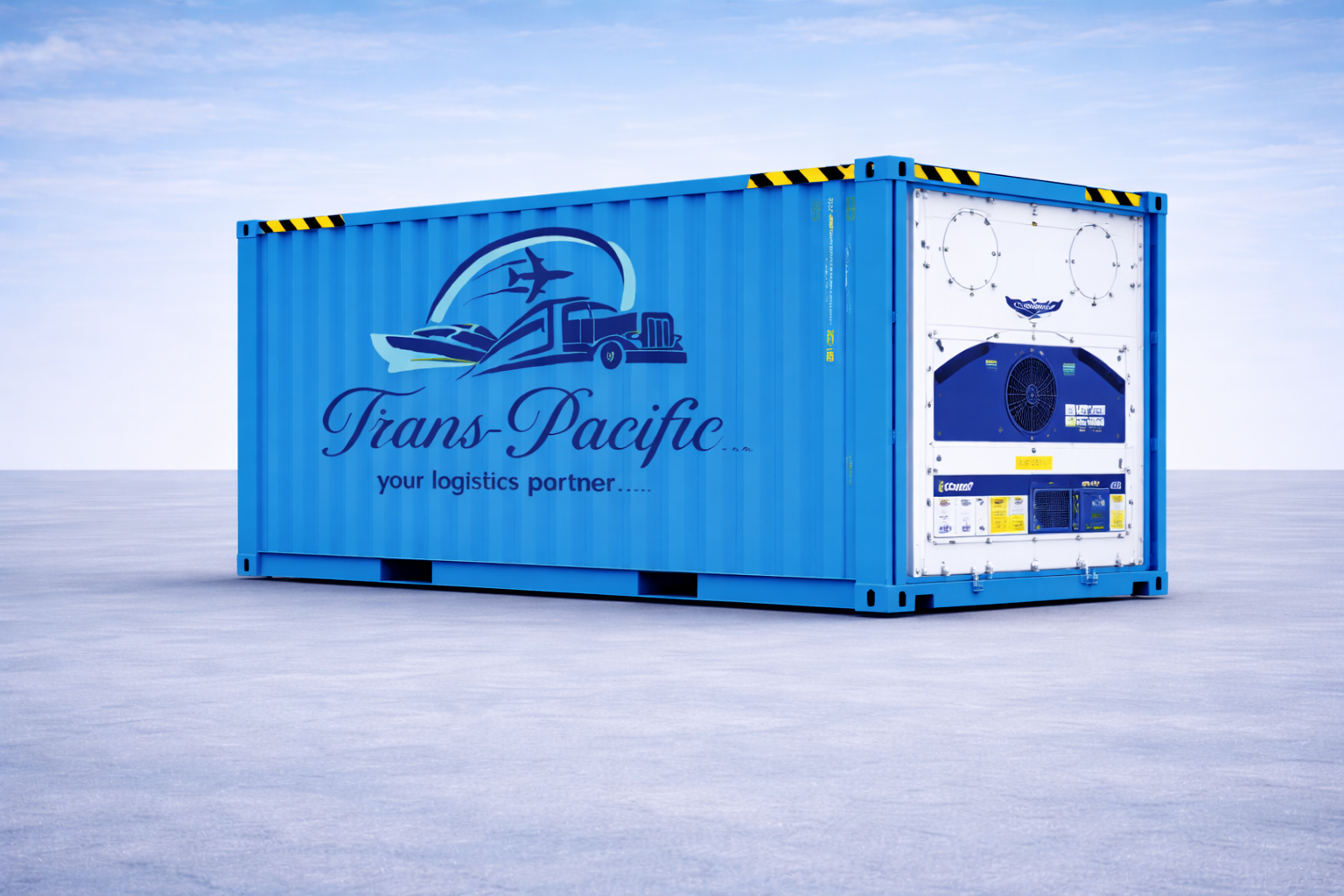

20-Foot Refrigerated (Reefer) Container Specifications

Temperature-controlled containers ideal for perishable and sensitive cargo.

20-Foot Refrigerated (Reefer) Container
Temperature Range
  • -30°C to +30°C
Internal Dimensions
  • Length: 545–550 cm
  • Width: 228–230 cm
  • Height: 226–228 cm
Capacity
  • Volume: 28–30 CBM
  • Payload: 27,000 (Approx) kg
  • Pallets: 8–10

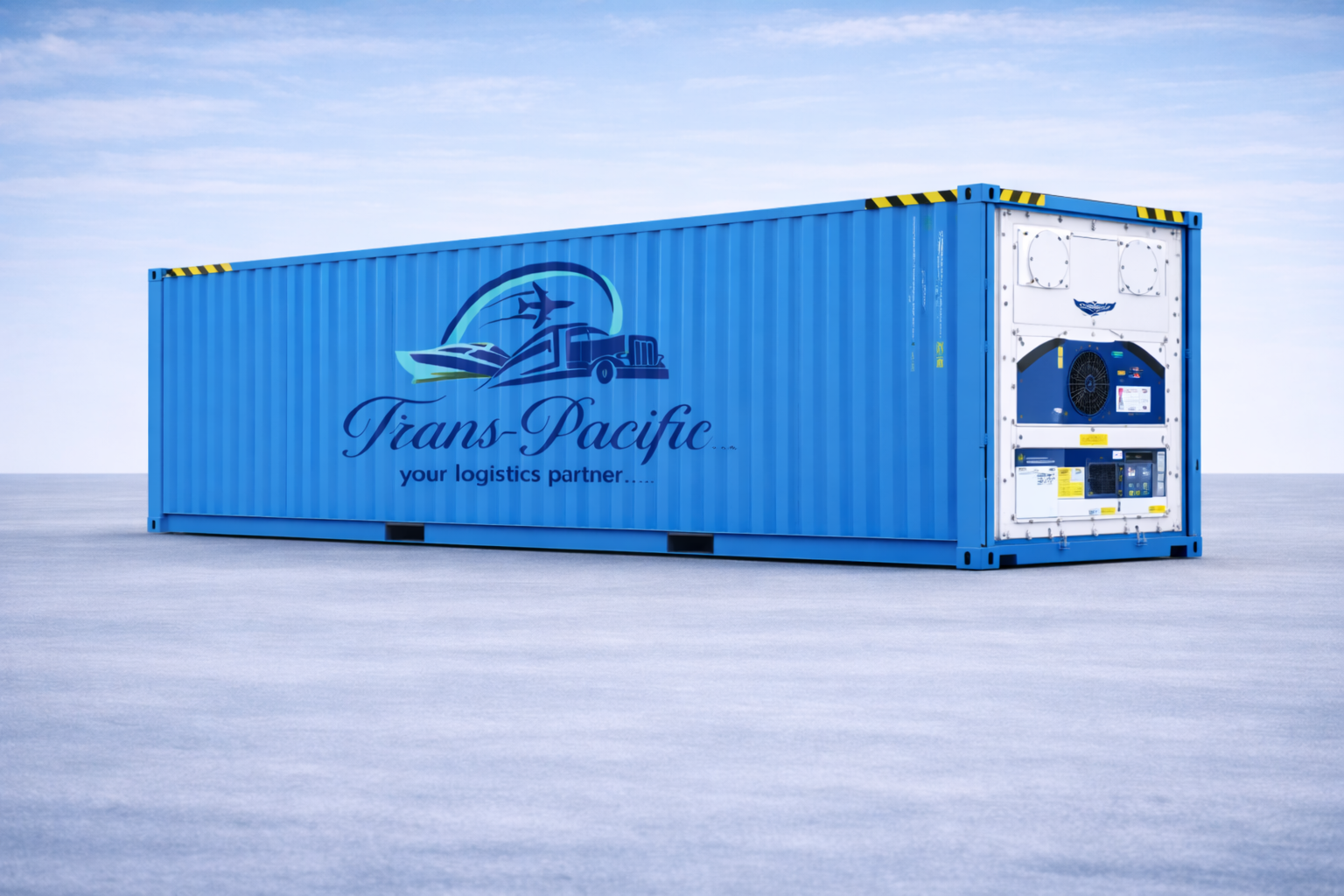

40-Foot Refrigerated (Reefer) Container Specifications

Large temperature-controlled container ideal for bulk perishable and pharmaceutical cargo.

40-Foot Refrigerated (Reefer) Container
Temperature Range
  • -30°C to +30°C
Internal Dimensions
  • Length: 1145–1150 cm
  • Width: 228–230 cm
  • Height: 226–228 cm
Capacity
  • Volume: 60–67 CBM
  • Payload: 29,000 (Approx) kg
  • Pallets: 18–20

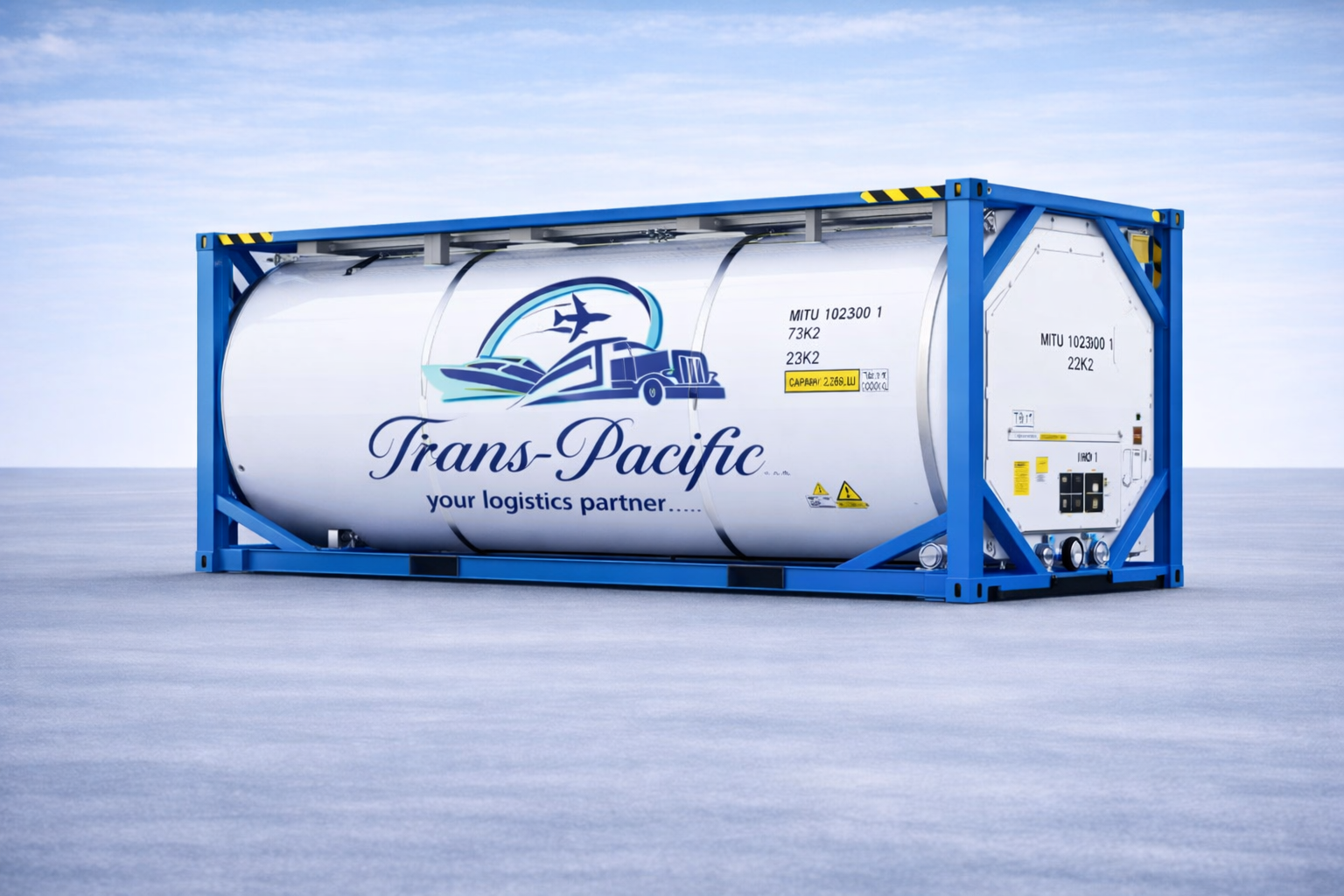

Tank Container (ISO Tank) Specifications

Safe and efficient solution for transporting bulk liquids, chemicals, and food-grade cargo.

Tank Container (ISO Tank)
Capacity
  • Volume: 21,000–26,000 Liters
Weight Limits
  • Payload: 30,000–32,000 kg
  • Gross Weight: up to 36,000 kg
Features
  • Stainless steel tank
  • Food & chemical grade options
  • Heating & insulation available
  • Top loading & bottom discharge

Flat Rack Container Specifications

Ideal for heavy, oversized and out-of-gauge cargo with open sides and top loading flexibility.

20 Feet Flat Rack Container
20-Ft Flat Rack
  • Length: 605.8 cm | 20 ft
  • Payload: 27,000–28,000 kg

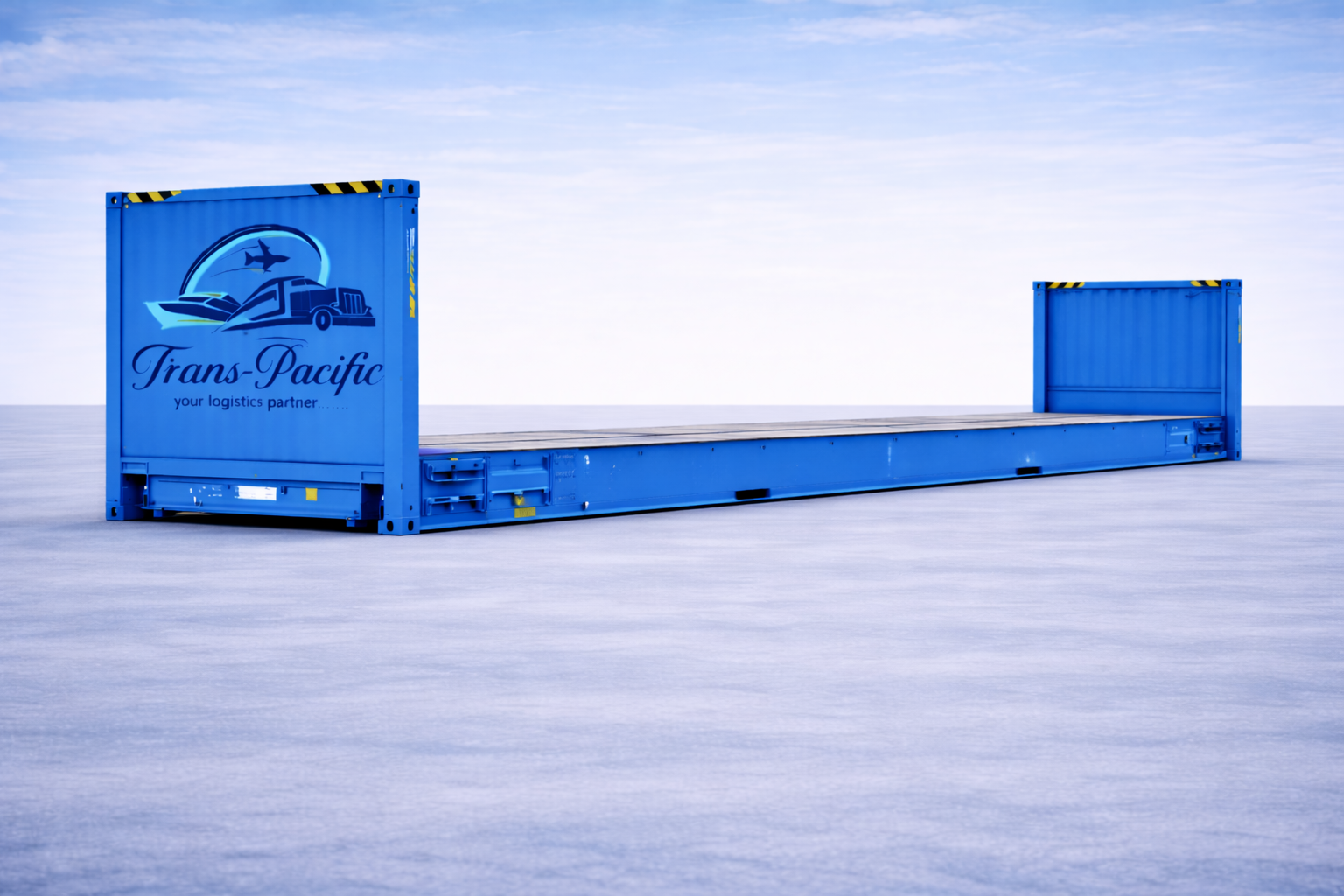

40 Feet Flat Rack Container
40-Ft Flat Rack
  • Length: 1219.2 cm | 40 ft
  • Payload: 35,000–40,000 kg

Open Top Container Specifications

Ideal for heavy, oversized and out-of-gauge cargo with open sides and top loading flexibility.

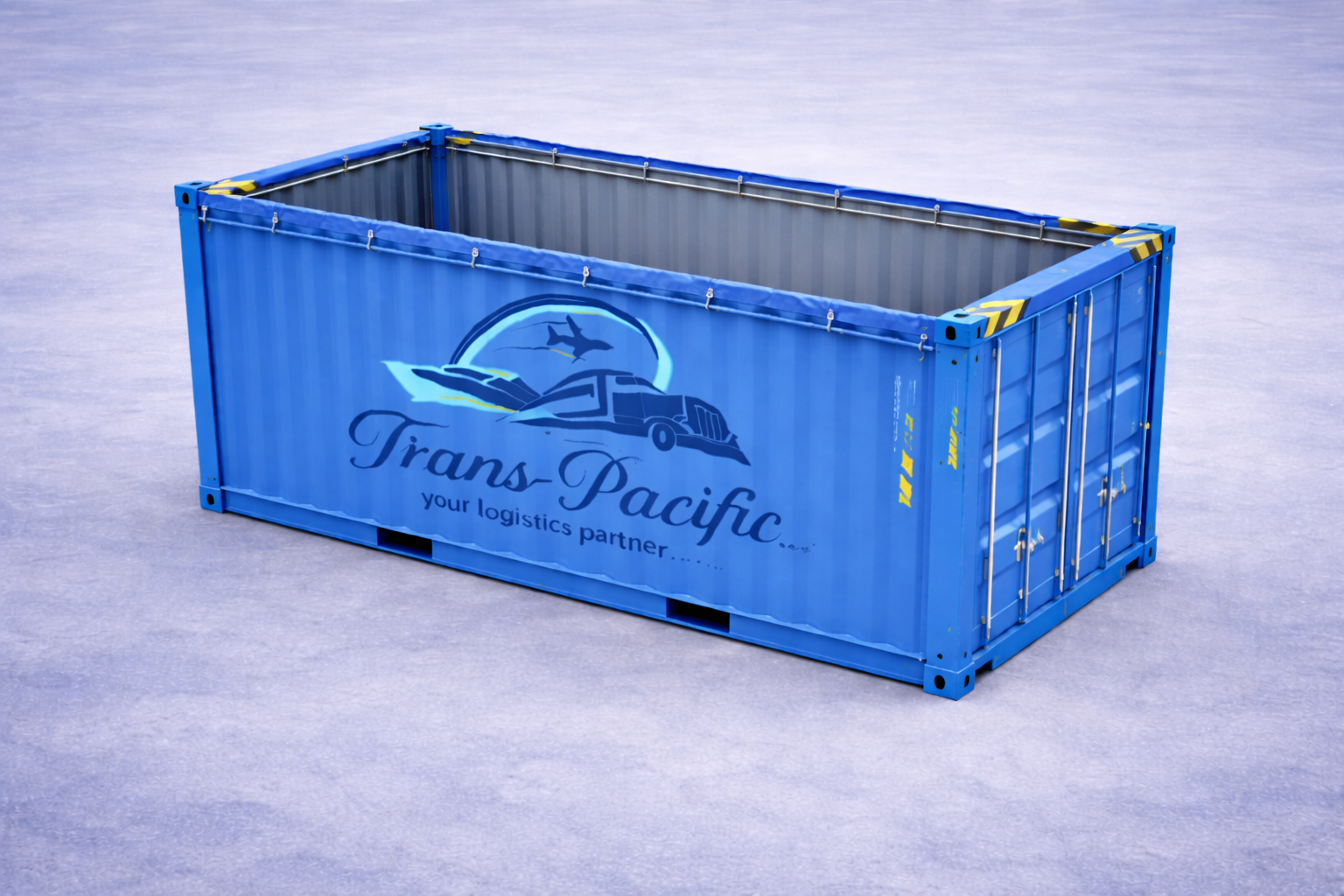

20 Feet Open Top Container
20-Ft Open Top
20-Ft Open Top
  • Length: 605.8 cm | 20 ft
  • Payload: ~28,000 kg
  • Volume: 32–33 CBM

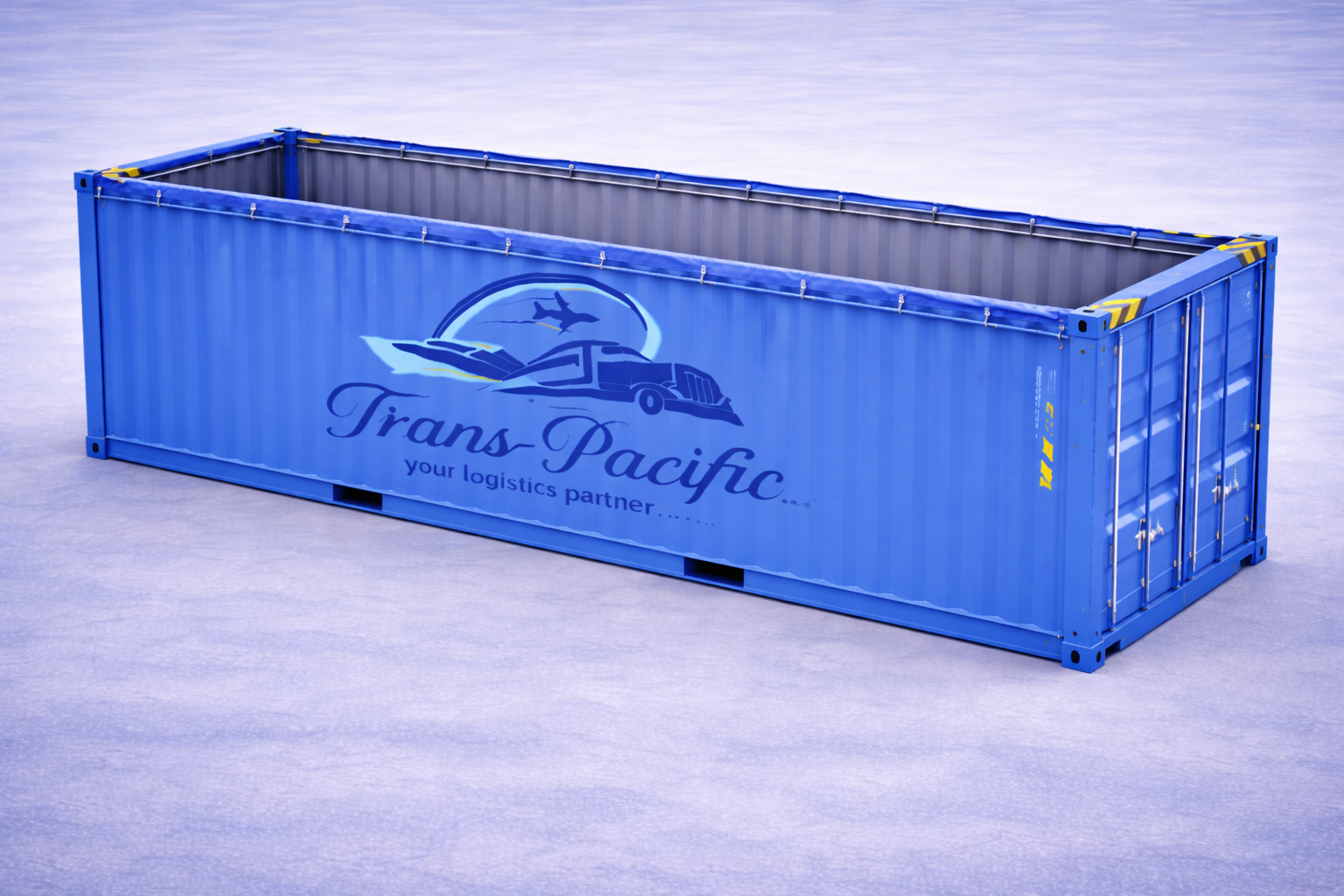

40 Feet Open Top Container
40-Ft Open Top
40-Ft Open Top
  • Length: 1219.2 cm | 40 ft
  • Payload: 26,500–27,000 kg
  • Volume: 65–67 CBM
